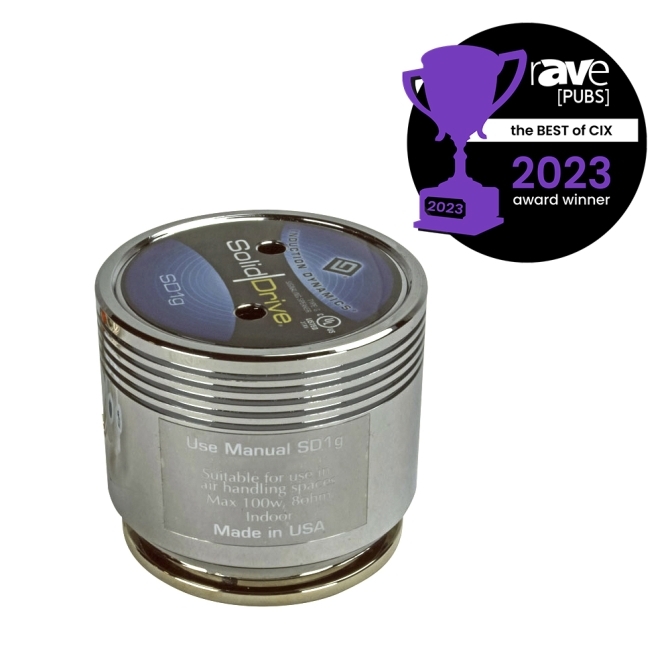

SolidDrive SD-1 Glass Surface Mount Actuator in Titanium

SolidDrive SD1G Actuator in Titanium for Glass Surface

The SD1g attatches to glass and other non-porous surfaces using a double-sided adhesive disk (included). Each SD1g is designed for one channel of audio. An optional equilization module optimizes the SD1g for use on glass. The SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate with very high-powered neodymium magnets and dual symmetrically opposed motors to convert audio signals into powerful vibrations. Those vibrations are transferred into solid surfaces through direct contact. High-quality, full-range sound is then radiated from the entire surface with a frequency response of 60 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. The result is acoustical uniformity throughout the listening space.

Owner's Manual | Tech Sheet | Removal Instructions | CE Certification | UL Certificate

About SolidDrive
More Information
Manufacturer's CategoryThe Original SolidDrive
Height2.06 in / 52.32 mm
Width/Diameter2.3 in / 58.42 mm
Shipping Weight1.35 lbs / 0.61 kg
Carton Height5.5 in / 139.7 mm
Carton Length5.25 in / 133.35 mm
Carton Width5.25 in / 133.35 mm
CertificationsCE, RoHS, UL1480, UL2043
Enclosure PropertiesAnodized Aluminum
Included AccessoriesAdhesive Pad
Optional AccessoriesTitanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Glass (PEM-G)|Junction Box (AC-JB10-XFMR or AC-JB20-XFMR)
Source InputsWire Leads
Coverage Angle (-6dB @ 2kHz) 120°
Frequency Response (± 10 dB)60 Hz - 15 kHz Nominal w/o EQ
Frequency Response (± 3 dB)80 Hz - 10 kHz Nominal w/o EQ
Magnetically BoostedNo
Max. Continuous Power RMS30 W
Max. Program Power50 W w/ 100 Hz 12 dB octave high-pass
Minimum Impedance (Ω Ohms)8 Ω
Nominal Impedance (Ω Ohms)8 Ω
Sensitivity dB @ 1W/1M73.5 dB
Sensitivity dB @ 2.83V/1M70 - 75 dB
